Product Overview

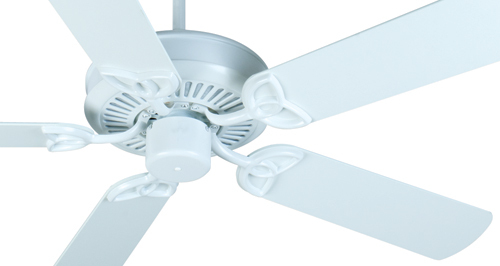

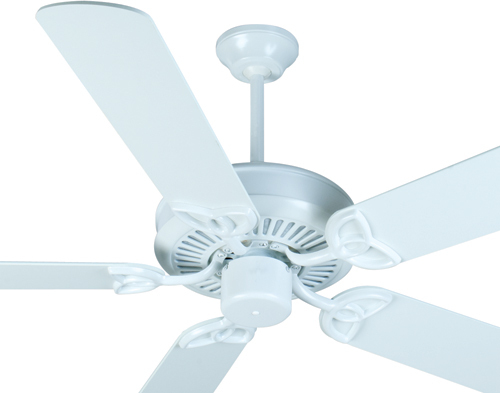

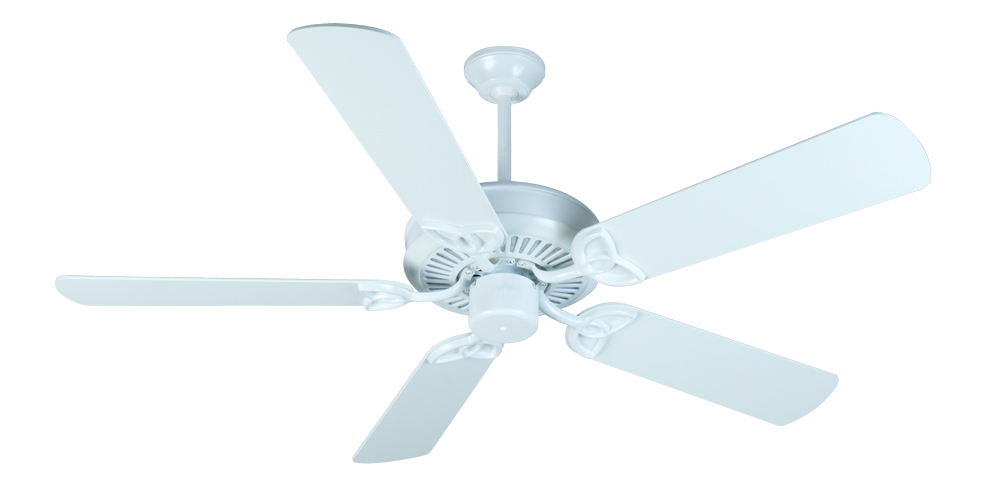

52" CXL Ceiling Fan Kit in White

Our Workhorse Fan. Pick Your Style Traditional, Transitional Or Modern. The Cxl Ceiling Fan Fits Anywhere, Any Place And Is Customizable In 10 Finishes. Whether You Choose A 44", 52", 54" Or 56" Ceiling Fan, Each One Comes Ready To Roll With A HeavyDuty 3Speed Reversible Motor And Remote And Wall Controls Are Available. The Cxl Can Be Customized With Multiple Blade And Light Kit Options (Sold Separately).

Energy Information at High Speed

Airflow:

5415.14 Cubic Feet per Minute

Electricity Rate:

76 Watts (excluded lights)

Airflow Efficiency:

78.71 Cubic Feet Per Minute Per Watt

Standard Information

Category:

Fans

Subcategory:

Ceiling Fans

Finish:

White

Style:

Traditional

Americana

Option:

Dry Rated

Prop 65

Refinement Options

Category:

Ceiling Fans

Subcategory:

Ceiling Fan Kit

Style:

Classic

Family:

CXL

Voltage:

12060

Additional Info:

Country of Origin: China

Air Flow CFM:

5415.14

Air Flow Efficiency:

78.71

Amperage:

0.58

Blade Finish:

White

Blade Pitch:

14

Blade Span:

52

Blade Type:

Type 2

Blades Included:

Included

Canopy:

Depth 5.17 Width 5.17 Height 2.09

Down Rod Included:

3

6

Electricity Used:

76

Light Kit Included:

Adaptable

Material:

Steel Silicon Steel

Max Height:

15.38

Motor Fan Speed:

3

Motor RPM:

162

Motor Size:

188x15

Motor Type:

AC

Ship Weight:

2.98

Sold In Pack Of:

1

Special Features:

52" Plus Series Blades in White (Included)

Dual Mount (Flat or Angled Ceiling)

HeavyDuty, 3Speed Reversible Motor

Light Kit Adaptable (Sold Separately)

Limited Lifetime Warranty

Warranty:

Lifetime Limited on Motor, 1 Year on Accessories

Wire Included:

80

AirflowEfficiency High:

75.29

AMPS High Max:

0.59

Blade Count:

5

Blade Features:

Plus Series

Blade Length:

20.67

Blade Material:

MDF

Blade Sweep Options:

44 / 52 / 54 / 56

Blade Tip:

Picture Frame

Blade To Ceiling Height:

13.18

Blade Width:

5.87

CFM High:

5190.92

CFM High Max:

5275.37

CFM Low Max:

2122.58

Compatible Control Types:

CXLICSW Remote & Wall Controls

Control Method:

Pull Chain

Control Status:

Optional

Control Types Included:

Pull Chain

Country of Origin:

China

Downrod Diameter:

0.5

Downrod Quantity:

1

ElectricityUsed High:

70.07

ElectricityUsed Low:

13.9

Energy Guide CFM:

3711

Energy Guide CFM Watts:

85

Energy Guide Est Yearly Energy:

12

Energy Guide Watts:

44

Energy Star:

No

Finish Group:

White

Glass/Shade Included:

No

Housing Height:

6.6

Housing Size:

11.65

Leadwire Length:

84.000

Light Kit Adaptable:

Yes

Light Kit Features:

Light Kit Adaptable (Sold Separately)

Light Kit Options:

Bowl Light Kits, Universal Light Kits, or Customize Your Own (Universal Fitters and 2 1/4" Glass)

Motor Diameter:

188

Motor Height:

15

Motor Material:

Silicon Steel

MotorRPM 1:

180

MotorRPM 2:

130

MotorRPM 3:

74

MotorRPM Low:

67

Mounting Method:

Dual Mount (Flat or Angled Ceiling)

Number Of Downrods:

2

Prop 65:

View

Reverse Location:

Switch Housing

Reverse Method:

Slide Switch

Reversible Blades:

No

Room Size:

Large rooms (up to 18 X 20)

Safety Rating:

cULus

Secondary Downrod Quantity:

1

Slope Mount:

Yes

Up Down Capability:

No

Watts:

68.8
